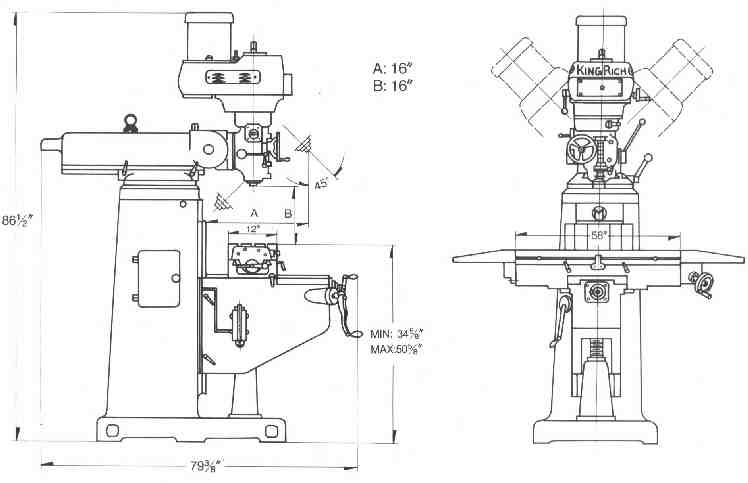

TECHNICAL DATA

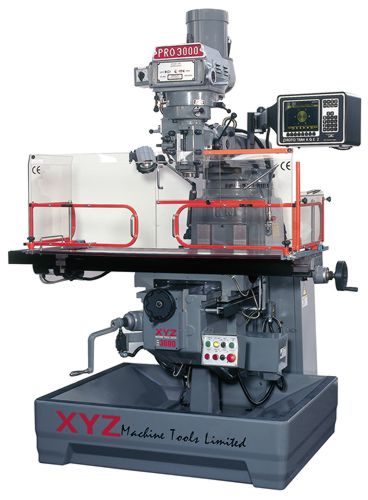

KRV 3000 |
|
|
Table Size |
305mm x 1473mm |
|
Tee Slots (3) |
15.9mm |
|
Longitudinal Travel (X Axis) |
1016mm |
|
Cross Travel |
406mm |
|
Knee Vertical Travel |
406mm |
|
Quill Travel |
127mm |
|
Quill Diameter |
105mm |
|
Quill Feeds |
0.038mm – 076 – 0.152mm |
|
Spindle Motor |
5HP |
|
Spindle Speeds |
Low: 70-460 RPM – High: 460-3600 RPM (60Hz) |
|
Spindle Taper |
ISO40 |
|
Ram Travel |
450mm |
|
Spindle Nose to top of table |
50-457mm |
|
Overarm Swivel on turret |
360º |
|
Head tilt front-to-back |
45º-0-45º |
|
Head tilt left to right |
90º-0-90º |
|
Max. throat depth |
610mm |
|
Max. table load |
550kgs |
|
Approx. net weight |
1850kgs |
|
Fitted with Newall DP7 DRO Counter |
|
