TECHNICAL DATA

CNR6 160

Rated capacity

(KN)

1600

Rated number of strokes

(C/min)

55

Motor power


(KW)

18,5

Motor speed


(g/min)

1430

Variable stroke length

(mm)

10 - 200

Slide adjustement

(mm)

110

Table-ram distance

P (mm)

430

Bolster dimensions


Sp. (mm)
O (mm)
N (mm)

78
750
1250

Diameter of bolster hole

(mm)

165

Ram dimensions

I (mm)
L (mm)

600
850

Diameter of spigot hole

(mm)

60

Distance from centre of bolster to frame

(mm)

370

Distance between uprights

M (mm)

510

Weight (approx.)

(Ton)

14

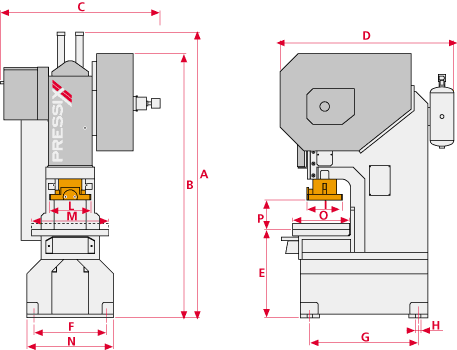

Overall size (approx.)


A (mm)
  B (mm)
  C (mm)
  D (mm)
  E (mm)
  F (mm)
  G (mm)
 H (mm)

3670
  3260
  1750
  2380
  968
  1100
  1790
  60
